大對數網線線序是如何排序顏色的？

來源: 網線廠家更新時間:2014-06-23 18:51:19 點擊次數:

大對數線纜對於很多網線廠家來說，都不想去碰，非常的複雜，顏色線序有錯誤那將非常的麻煩，而且針對每一對線的絞距都有很大的要求，目前主要是以三類標準跟五類標準技術來滿足實際要求。愛訊通專業的網線廠家為貢獻一份關於大對數網線的線纜顏色排序技術給大家分享。

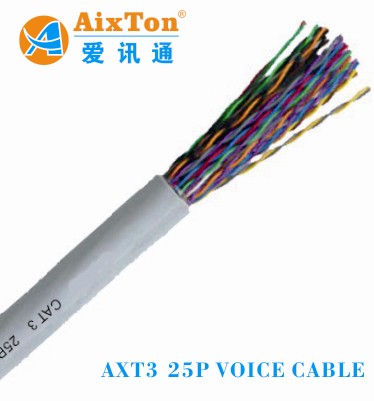

大對數語音電纜線序基本以25對為基本單元，線纜有五個基本顏色，順序分別為白、紅、黑、黃、紫，每個基本顏色裡面又包括五種顏色順序分別為藍、橙、綠、棕、灰，即所有的線對1～25對的排序為白藍、白橙、白綠、白棕、白灰;紅藍、紅橙、紅綠、紅棕、紅灰;……紫藍、紫橙、紫綠、紫棕、紫灰。 1對—白蘭2對—白桔3對—白綠4對—白棕5對—白灰 6對—紅蘭7對—紅桔8對—紅綠9對—紅棕10對—紅灰 11對—黑蘭12對—黑桔13對—黑綠14對—黑棕15對—黑灰 16對—黃蘭17對—黃桔18對—黃綠19對—黃棕20對—黃灰 21對—紫蘭22對—紫桔23對—紫綠24對—紫棕25對—紫灰色譜扎帶為：藍白、橙白、綠白、棕白、灰白、藍紅、橙紅、綠紅每個色譜扎帶裡包有25對先藍白：為1-25的線序橙白：為26-50的線序綠白：為51-75的線序棕白：為76-100的線序灰白：為101-125的線序藍紅：為126-150的線序橙紅：為151-175的線序綠紅：為178-200的線序而每個25對電纜中的色譜為：A線：白、紅、黑、黃、紫 B線：藍、橙、綠、棕、灰組成的，每個25對線中的線序依次為：白藍、白橙、白綠、白棕、白灰、紅藍、紅橙、紅綠、紅棕、紅灰、黑藍、黑橙、黑綠、黑棕、黑灰、黃藍、黃橙、黃綠、黃棕、黃灰、紫藍、紫橙、紫綠、紫棕、紫灰 ************************ 需要補充一句，25對中，每5對B線始終為藍、橙、綠、棕、灰，A線為白藍、白橙、白綠、白棕、白灰等，即第一對為白藍、藍，第25對為紫灰、灰。 *************** 通常HYA通信電纜分為：10對，20對，30對，50對，100對，200對，300對。。。。。2400對。 5種主色：白色、紅色、黑色、黃色、紫色 5種次色：蘭色、桔色、綠色、棕色、灰色通信電纜線序色譜認識舉例說明： 10對通信電纜色譜線序表 1對—白蘭2對—白桔3對—白綠4對—白棕5對—白灰 6對—紅蘭7對—紅桔8對—紅綠9對—紅棕10對—紅灰 20對通信電纜色譜線序表 1對—白蘭2對—白桔3對—白綠4對—白棕5對—白灰 6對—紅蘭7對—紅桔8對—紅綠9對—紅棕10對—紅灰 11對—黑蘭12對—黑桔13對—黑綠14對—黑棕15對—黑灰 16對—黃蘭17對—黃桔18對—黃綠19對—黃棕20對—黃灰
30對通信電纜色譜線序說明：30對的通信電纜要注意了，30對通信電纜裡有2種白色的主色，大於25對了就一定要看標識線了！！有一小把是用“白蘭”標識線纏著的，另有5對線用“白桔”標識纏著！ (注意：這25對用“白蘭”色環標識線纏著) 1對—白蘭2對—白桔3對—白綠4對—白棕5對—白灰 6對—紅蘭7對—紅桔8對—紅綠9對—紅棕10對—紅灰 11對—黑蘭12對—黑桔13對—黑綠14對—黑棕15對—黑灰 16對—黃蘭17對—黃桔18對—黃綠19對—黃棕20對—黃灰 21對—紫蘭22對—紫桔23對—紫綠24對—紫棕25對—紫灰 (注意：這5對有”白桔”標識纏著) 21對—白蘭22對—白桔23對—白綠24對—白棕25對—白灰
50對通信電纜色譜線序：說明：50對的通信電纜要注意了，50對通信電纜裡有2種標識線，前25對是用“白蘭”標識線纏著的！！後25對是用“白桔”標識線纏著的！！ (注意：這25對用“白蘭”標識線纏著) 1對—白蘭2對—白桔3對—白綠4對—白棕5對—白灰 6對—紅蘭7對—紅桔8對—紅綠9對—紅棕10對—紅灰 11對—黑蘭12對—黑桔13對—黑綠14對—黑棕15對—黑灰 16對—黃蘭17對—黃桔18對—黃綠19對—黃棕20對—黃灰 21對—紫蘭22對—紫桔23對—紫綠24對—紫棕25對—紫灰 (用“白桔”標識線纏著) 26對—白蘭27對—白桔28對—白綠29對—白棕30對—白灰 31對—紅蘭32對—紅桔33對—紅綠34對—紅棕35對—紅灰 36對—黑蘭37對—黑桔38對—黑綠39對—黑棕40對—黑灰 41對—黃蘭42對—黃桔43對—黃綠44對—黃棕45對—黃灰 46對—紫蘭47對—紫桔48對—紫綠49對—紫棕50對—紫灰
100對通信電纜色譜線序表說明：100對的通信電纜裡有4種標識線，第一的25對是用“白蘭”標識線纏著的！！第二的25對是用“白桔”標識線纏著的！第三的25對是用“白綠”標識線纏著的！第四的25對是用“白棕”標識線纏著的！ (注意：用“白蘭”標識線纏著) 1對—白蘭2對—白桔3對—白綠4對—白棕5對—白灰 6對—紅蘭7對—紅桔8對—紅綠9對—紅棕10對—紅灰 11對—黑蘭12對—黑桔13對—黑綠14對—黑棕15對—黑灰 16對—黃蘭17對—黃桔18對—黃綠19對—黃棕20對—黃灰 21對—紫蘭22對—紫桔23對—紫綠24對—紫棕25對—紫灰 (注意：用“白桔”標識線纏著) 26對—白蘭27對—白桔28對—白綠29對—白棕30對—白灰 31對—紅蘭32對—紅桔33對—紅綠34對—紅棕35對—紅灰 36對—黑蘭37對—黑桔38對—黑綠39對—黑棕40對—黑灰 41對—黃蘭42對—黃桔43對—黃綠44對—黃棕45對—黃灰 46對—紫蘭47對—紫桔48對—紫綠49對—紫棕50對—紫灰 (注意：用“白綠”標識線纏著) 51對—白蘭52對—白桔53對—白綠54對—白棕55對—白灰 56對—紅蘭57對—紅桔58對—紅綠59對—紅棕60對—紅灰 61對—黑蘭62對—黑桔63對—黑綠64對—黑棕65對—黑灰 66對—黃蘭67對—黃桔68對—黃綠69對—黃棕70對—黃灰 71對—紫蘭72對—紫桔73對—紫綠74對—紫棕75對—紫灰 (注意：用“白棕”標識線纏著) 76對—白蘭77對—白桔78對—白綠79對—白棕80對—白灰 81對—紅蘭82對—紅桔83對—紅綠84對—紅棕85對—紅灰 86對—黑蘭87對—黑桔88對—黑綠89對—黑棕90對—黑灰 91對—黃蘭92對—黃桔93對—黃綠94對—黃棕95對—黃灰 96對—紫蘭97對—紫桔98對—紫綠99對—紫棕100對—紫灰 200對通信電纜色譜線序表(大對數電纜)
